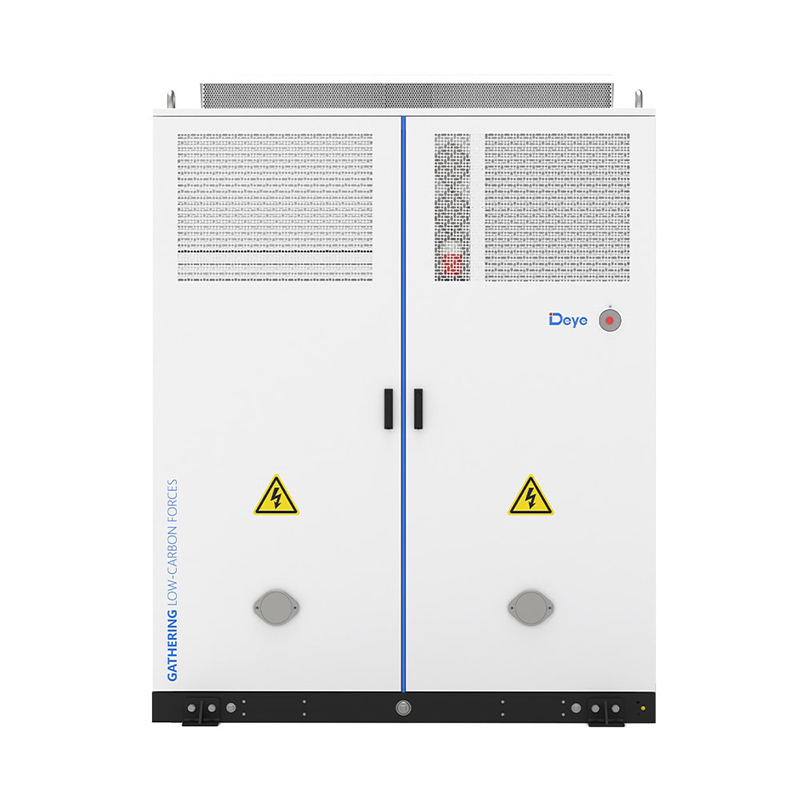

Deye MC-L522-2H3 522.496kWh / 250kW Liquid-Cooled AC Battery Energy Storage System

Name: Deye MC-L522-2H3 522.496kWh / 250kW Liquid-Cooled AC Battery Energy Storage System
Rating: 5 (99 reviews)

customizedVAT excluded

Inquiry Us Add Product

PREV: Deye MC-L522-2H2 522.496kWh / 250kW Liquid-Cooled AC Battery Energy Storage System NEXT: No next product

Product Description

Uni Z International B.V. +31610999937

Uni Z International B.V. [email protected]

The Deye MC-L522-2H3 combines 522.496 kWh of LiFePO4 storage with a 250 kW AC power stage in a liquid-cooled commercial cabinet. The battery operates at 832 V nominal across a 715–936 V DC window and is specified at a 0.5P charge/discharge rate, creating a well-matched platform for approximately two-hour-class commercial energy shifting. On the grid side, the published rating is 250 kW at 380/400 V three phase, with power-factor control from -1 to 1. Aerosol and water fire suppression, IP54 protection, ≥C4 corrosion resistance and operation down to -30°C support deployment in demanding C&I environments, while Modbus TCP, RS485 and DIDO interfaces simplify EMS integration. The 2H3 is separately listed by Deye ESS even though the current public technical table publishes the same core electrical platform as the 2H2; this listing therefore avoids inventing an undocumented performance difference. That disciplined specification is important for project buyers: the product page should sell the documented 522.496 kWh / 250 kW platform, not an assumed difference that Deye has not published.

Battery	LiFePO4, 314 Ah
Nominal energy	522.496 kWh
nominal DC voltage	832 V
DC range	715–936 V
Charge/discharge rate	0.5P
AC	380/400 V, 3L+N+PE; 50/60 Hz
Rated AC power	250 kW
maximum power	250 kW
Power factor	-1 to 1
Cooling	liquid cooling
fire suppression	aerosol + water
Ingress protection	IP54; anti-corrosion grade ≥C4; altitude ≤3000 m
Communication	RS485 / Modbus TCP / DIDO
Operating temperature	-30°C to +55°C, derating from ≥40°C
Dimensions	2000×1400×2440 mm; weight ≤5500 kg
