Zetara Magic – ZBlock200-L-HF

customizedVAT excluded

Inquiry Us Add Product

PREV: Zetara Magic – ZBox200-MF NEXT: Zetara Magic - ZBox400-L

Product Description

Uni Z International B.V. +39 3444606026

Uni Z International B.V. [email protected]

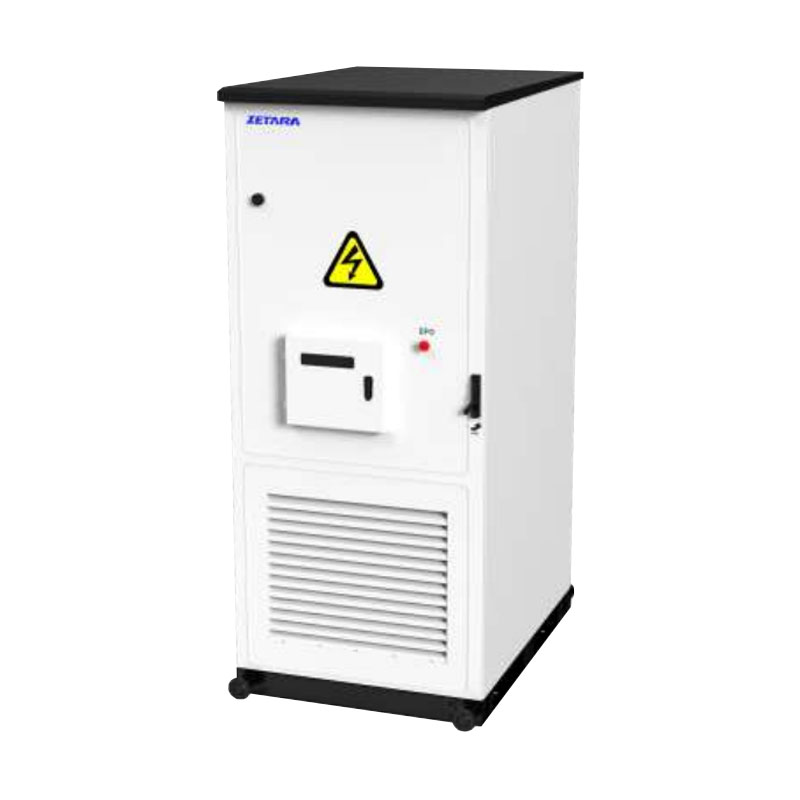

The Magic-ZBlock200-HF is a power storage system specially designed for regional microgrids, such as small CBDs, farms, and factories. It ensures a reliable power supply and energy security in distributed and semi-off-grid scenarios.

Multi-Scenario Adaptability
·Supports peak shaving, energy shifting, and capacity firming
·Bidirectional power conversion system with full four-quadrant operation

Real-time monitoring and Control
·24/7 real-time monitoring and control
·both remote and on-site Intelligent early warning system, automated safety checks, and elimination of potential hazards

Flexible & expandable
·Parallel battery cabinet expansion, supporting up to 5 MWh total capacity
·Easy and convenient installation for rapid deployment

Economical & Efficient
·High energy efficiency for optimized performance
·Factory pre-assembled, fast deployment, and easy transportation
·Advanced thermal management improves battery lifespan and system discharge capacity

Model	Magic-ZBlock200-L-HF
AC Parameter
Rated Power (kW)	105
Rated Voltage (V)	400
Voltage Range (V)	340-460
Rated Frequency (Hz)	50/60
Applicable Grid Frequency (Hz)	45-55/55-65
Overload Capability	110%-longtime
Battery Parameter
Cell Type (Ah)	LFP280
Battery Module Rated Voltage ()	153
Battery Module Energy (kWh)	43
Rated Voltage (V)	768
Voltage Range (V)	672-864
Battery Energy (kWh)	215
General Parameter
System Efficiency	≥87%
IP Rating	IP54
Anticorrosion Grade	StandardC4
Cooling Method	Battery: Liquid cooling PCS: Air Cooling
Operating Temperature Range	-20-50℃
Operating Humidity	0%-95%R.H
Altitude (m)	<2000
Firefighting System	Integrated
Dimension:WDH (mm)	100013262350
Total Weight (kg)	2500
Communication port	CAN, RS485, ETH
