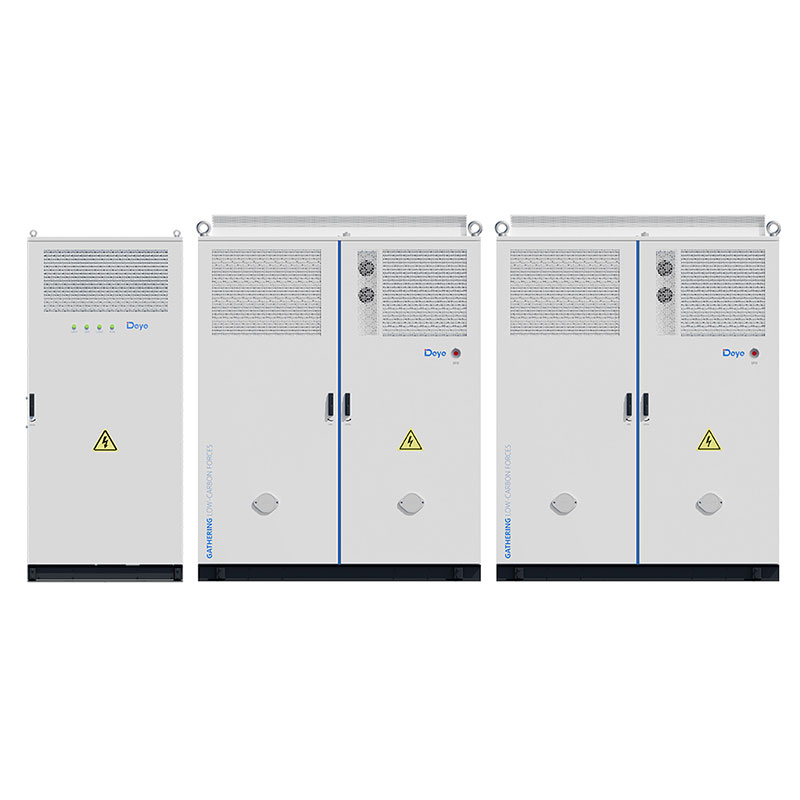

MC-L430-2H2 Series (EU) C&I ESS Solution

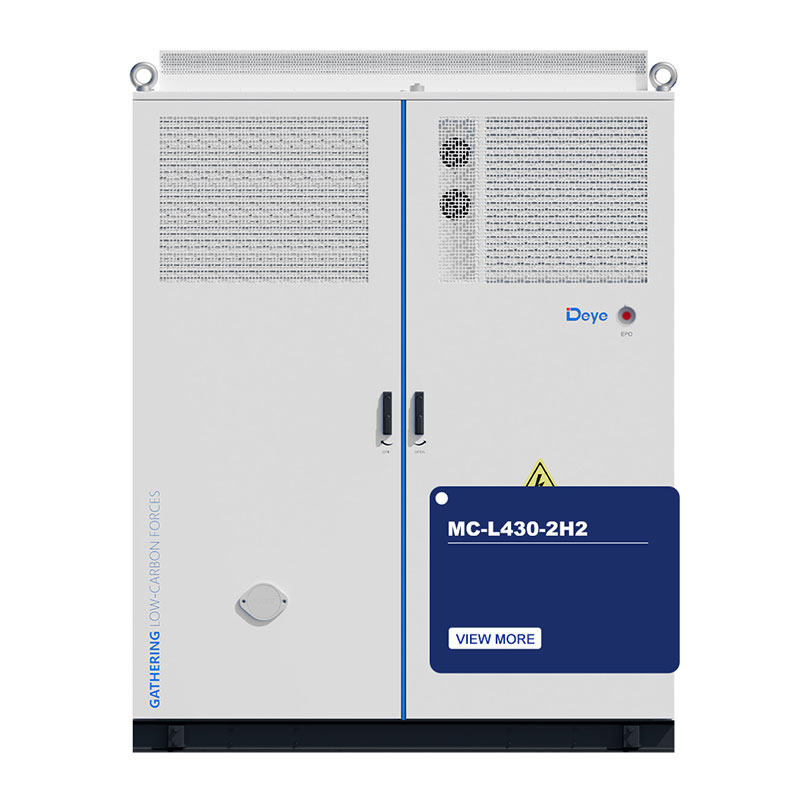

MC-L430-2H2: This model is an AC Battery Energy Storage System (BESS) with a nominal capacity of 280Ah and a nominal energy of 430.08kWh. It operates at a nominal DC voltage of 768Vd.c. and has a DC voltage range of 636Vd.c to 876Vd.c. The system is housed in an IP54-rated enclosure and weighs up to 4600kg.

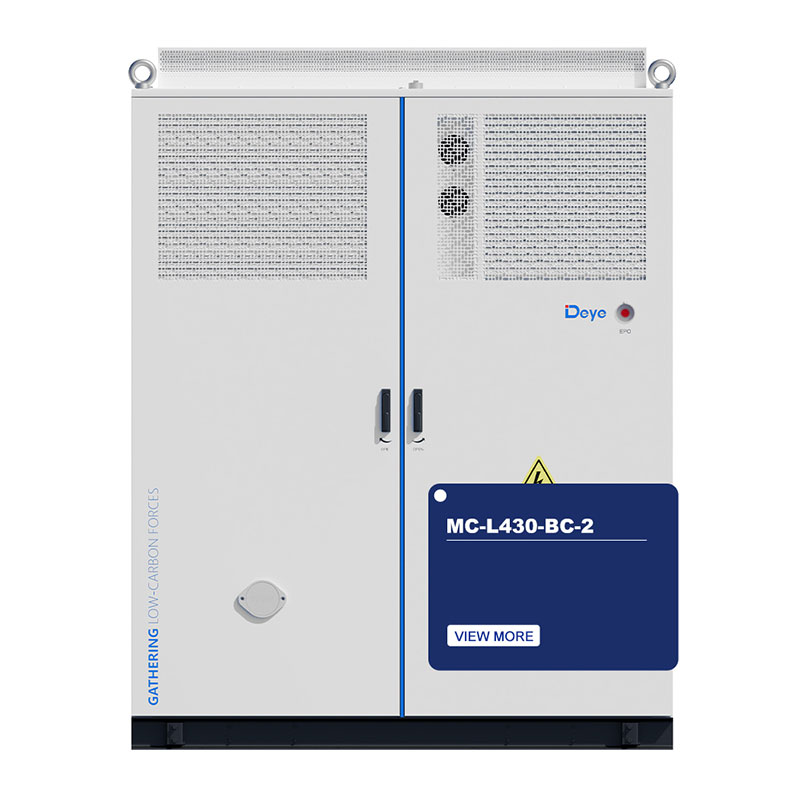

MC-L430-BC-2: This is a DC Battery Energy Storage System (BESS). It shares the same battery specifications as the MC-L430-2H2, with a nominal capacity of 280Ah, nominal energy of 430.08kWh, a nominal DC voltage of 768Vd.c., and a DC voltage range of 636Vd.c to 876Vd.c. However, it is slightly lighter, weighing up to 4300kg, and is also housed in an IP54-rated enclosure.

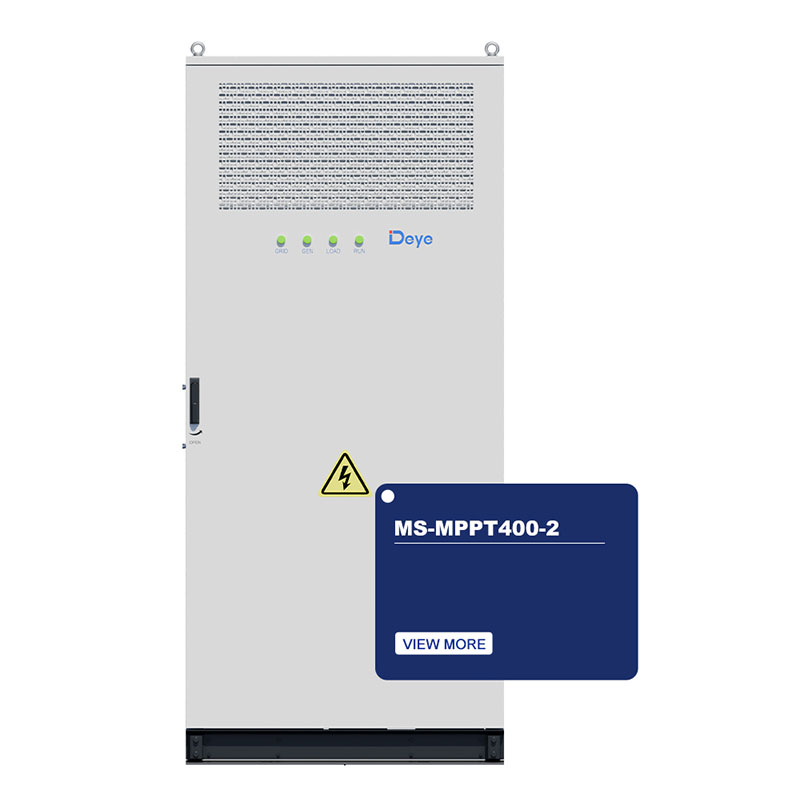

MS-MPPT400-2: This model is a Maximum Power Point Tracker (MPPT) with a rated power of 250kW for the load, 500kW for the power grid, and 500kW for an oil engine. It has a maximum PV input power of 200kW and a wide MPPT voltage range of 180V to 850V. This unit is designed for efficient solar energy harvesting with an MPPT efficiency of over 99.9%. It is significantly lighter than the other two models, weighing up to 700kg, and comes in an IP54-rated enclosure.
