Product Description

Uni Z International B.V. +31610999937

Uni Z International B.V. [email protected]

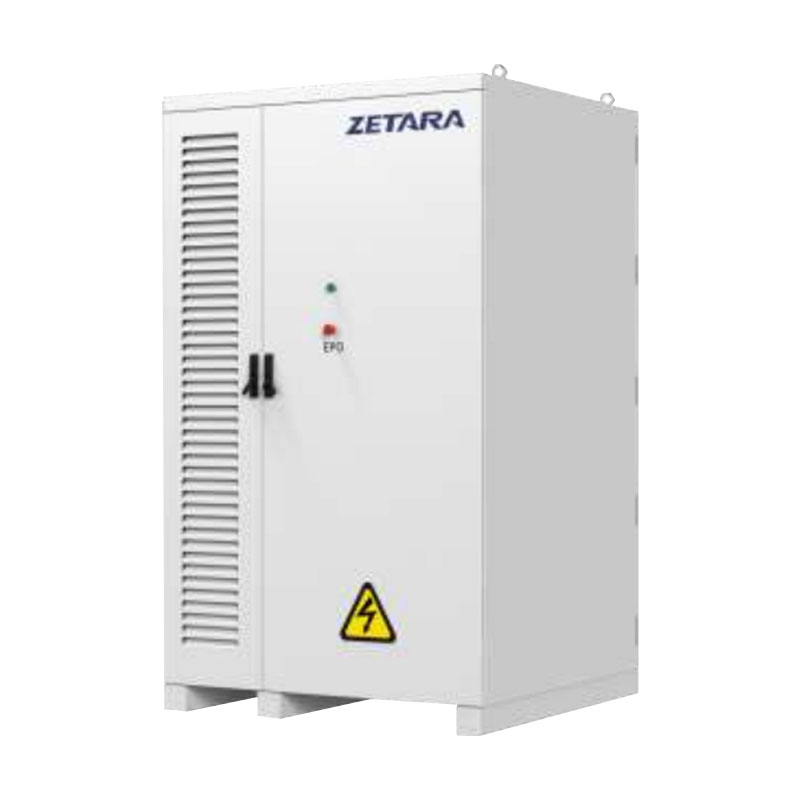

The ZBox400-L is a new-generation, high-security, large-capacity outdoor liquid-cooled high-voltage battery system. It supports 0.5C charge/discharge, integrates an intelligent BMS, and offers 418 kWh per cabinet, with support for up to 10 cabinets in parallel. Ideal for medium-sized industrial and commercial applications such as enhancing solar self-consumption, backup power, and peak scheduling.

Easy Installation and Maintenance
·Outdoor-rated housing suitable for various installation environments
·Modular design for easy maintenance and quick component replacement (battery modules, BMS, control units)

Real-time Monitoring and Control
·24/7 real-time monitoring and control, both remote and on-site
·Intelligent early warning system, automated safety checks, and elimination of potential hazards

Safety & Reliable
·Multi-stage overcurrent protection with no blind spots in electrical safety
·Integrated multi-layer fire protection to prevent fire and explosion risks
·IP55-rated waterproof and anti-corrosion design for long-term outdoor use, 15 years of reliability

Flexible and Expandable
·Parallel expansion supports up to 4.18 MWh battery capacity

Model	Magic-ZBox400-L
Battery Parameter
Cell Type (Ah)	LFP314
Battery Module Rated Voltage (V)	166.4
Battery Module Energy (kWh)	52.25
Rated Voltage (V)	1331.2
Voltage Range (V)	1164.8-1497.6
Battery Energy (kWh)	215
Rated Capacity (Ah)	314
Recommend Charge/Discharge Current (A)	157/157
Rated Energy (kWh)	418
Max. Continuous Charge/Discharge Current (A)	193/193
General Parameter
IP Rating	IP54
Noise (dB)	<75
Anticorrosion Grade	StandardC4
Cooling Mode	Liquid Cooling
Operating Temperature (℃)	-80
Operating Humidity	5%-95%R.H
Elevation (m)	<2000
Fire Fighting	Integrated
Dimension(WDH) (mm)	135013302350
Total Weight (t)	3.6
Communication Port	CAN, RS485, ETH
Parallel	Max.10 cabinets
Compliance
Certification	IEC62619,CE,EMC, UN38.3,UN3480
