Zetara Magic – ZCube1720-HF

customizedVAT excluded

Inquiry Us Add Product

PREV: Zetara Magic - ZBox400-L NEXT: Zetara Magic – ZCube1290-MF

Product Description

Uni Z International B.V. +39 3444606026

Uni Z International B.V. [email protected]

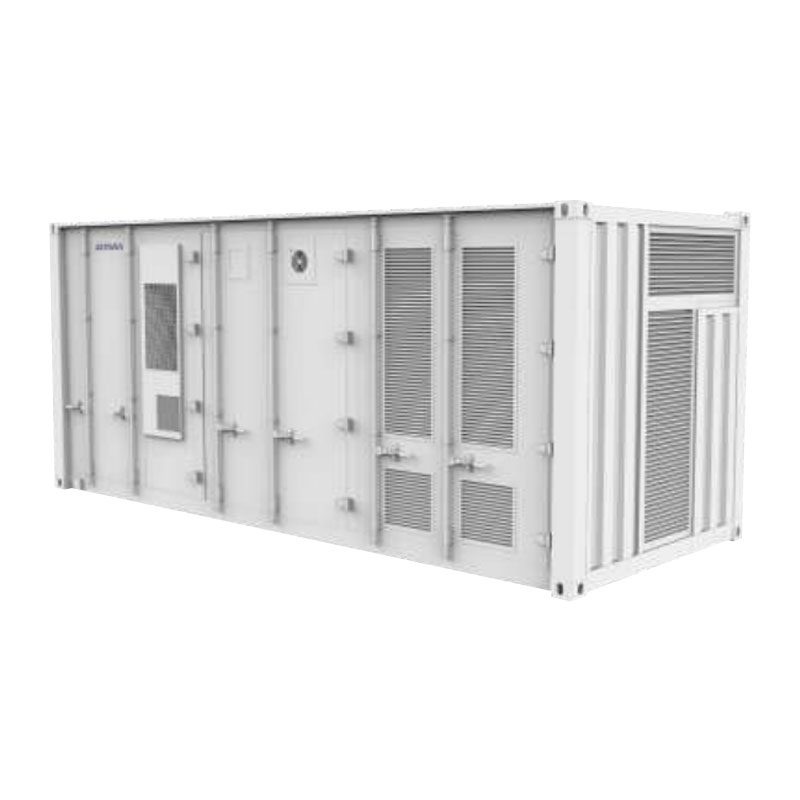

The Magic-ZCube1720-HF features a containerized integrated design, combining energy storage converters, batteries, BMS, thermal management, power distribution, fire protection, and more. By integrating core components with intelligent operation and maintenance, it enables easier transport and streamlined operation. A robust safety design enhances battery performance and extends service life. Designed for industrial and commercial applications, multiple containers can be connected in parallel to support scalable energy storage deployment.

High Efficiency & Stability
·Maximum system efficiency up to 98.2%
·Multi-string technology enhances battery safety and overall performance

Flexible Configuration
·Single system supports 500 kW power modules for scalable deployment
·3P3W AC output, compatible with 400 V / 480 V / 208 V / 690 V via external transformer

Enhanced Safety
·Compact system layout enhances structural safety and protection
·Intelligent monitoring and multi-layer safeguards ensure comprehensive energy storage protection

Model	Magic-ZCube1720-HF
	500KW	1720KWh
AC Parameter
Rated Power (KVA)	500
AC Max Power (KVA)	550
AC Frequency (Hz)	50/60(-2.5~2.5)
AC Voltage (V)	400(-15%~15%)AC
AC PF	0.1~1 Leading or Lagging
Battery Parameter
Cell Type (Ah)	LFP280
Battery Module Rated Voltage (V)	51.2
Battery Module Energy (kWh)	14.336
Rated Voltage (V)	768
Voltage Range (V)	672-864
Battery Energy (kWh)	1720
General
IP Grade	IP54
Dimension: WDH(mm)	609624382590
Anticorrosion Grade	C4
Fire Fighting	Integrated
Cooling Mode	PCS: Forced Air Cooling, Battery: Air Cooling
Operating Temperature(C)	-20~50
Storage Temperature(C)	-40~60
Auxiliary Power Supply(V)	230AC
Communication Protocol	CAN, RS485, Modbus TCP/IP
